*** For control of servos, not traditional switch machines ***

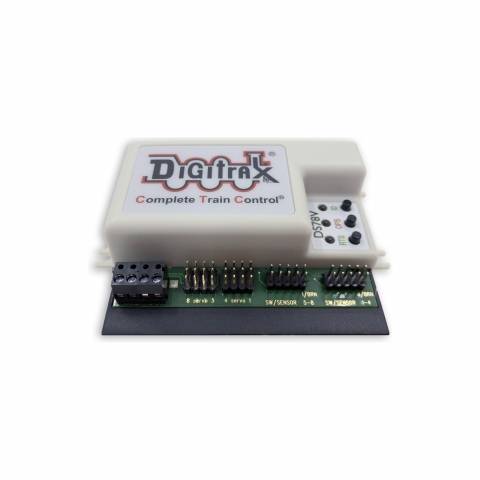

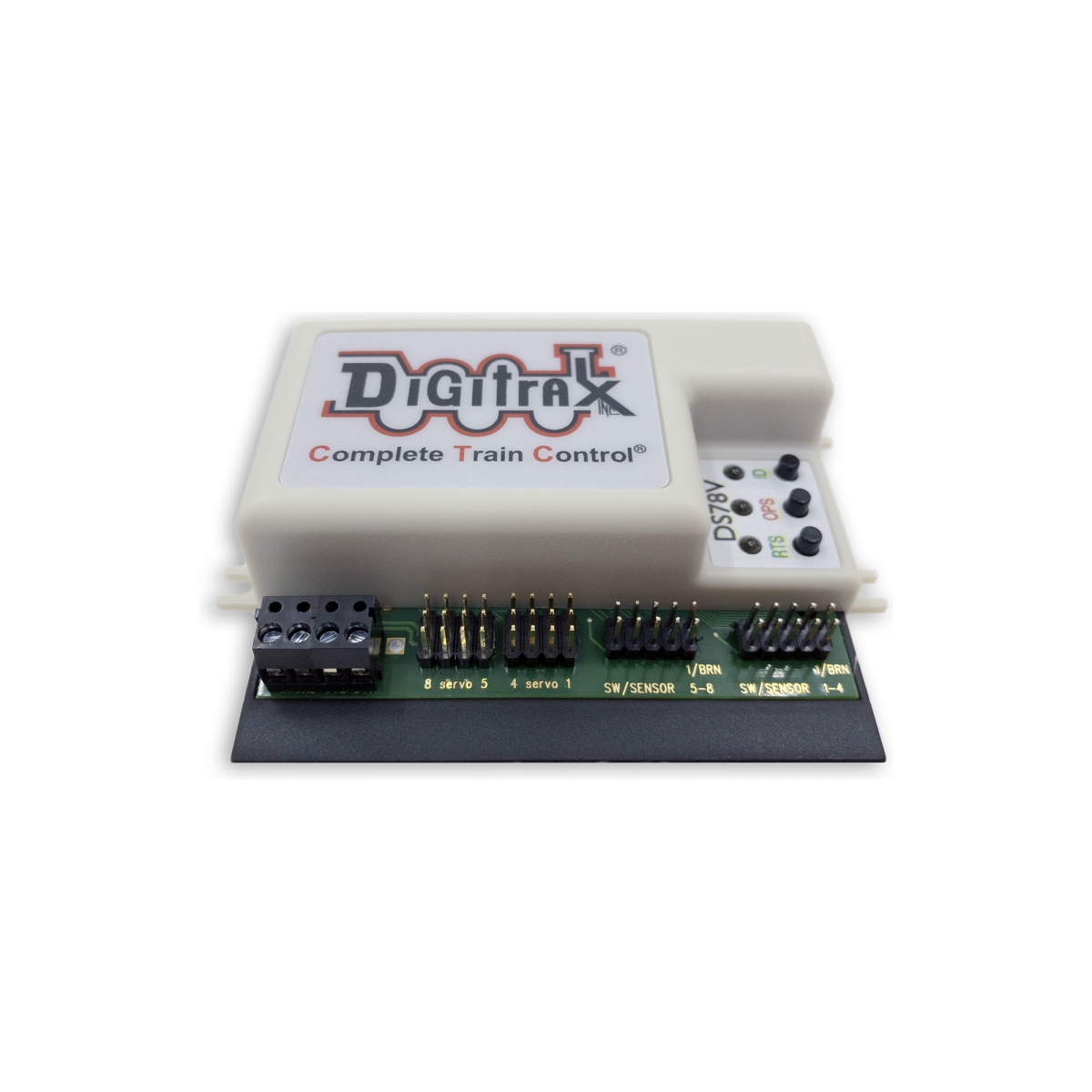

Eight 9G servo decoder for 2-position Slow-motion turnouts.

Configurable to control eight 3-position semaphores.

Works with compatible LocoNet Systems.

Plug and play connections.

Option setup switches for configuration.

On-layout remote programmability via LocoNet.

16 System Routes, with EZ-Route setup.

Routes remotely editable using DT602 with latest software.

16 input lines for Switch and Detection inputs.

Optional 16 direct hardware Route triggers.

Software field update/IPL over LocoNet.

DC 2mm 12V jack for reliable power input.

Supports two DSXC4 input connector boards and cables.

Supports two BD4N’s for block detection reporting.

Supports 8 DSXCP1 Fascia control and direction indicators.

Supports DSXCP1 indicating ‘servo in motion’.

Optional DCC track input for limited feature capabilities.


Features:
8 output channel LocoNet based Stationary decoder for operating eight 9G-type servo motors for turnout or general motion control.
Plug-in connectors for simple and easy installation and service.
User defined 8 consecutive switch (SW) addresses in 2000+ SW range.
Stabilized 5 Volt servo drive voltages.
Easy setup with Option Switches (OPSW) or LocoNet CV programming.
Power input from 2mm DC jack, or DCC track voltage, 10V min to 20V max.
16 easy to setup System Routes, with 8 SW Entries each.
16 input control lines; 8 for Output/SW change and 8 Sensor/DS inputs.
Additional advanced LocoNet Configuration modes using DT602 throttles.
