The Large Right Clamp also has a jaw length of 2-3/4" but with a larger Base Angle and and longer screws than the Long Right Clamp. End Screws adjust Clamping Tubes to provide uniform pressure over the length of the clamp. Two 1 inch Base Angle Notches allow locations to apply glue to inside corner of the joint and adding corner stiffeners. It can also be used for joining other materials up to 9/16" thick.

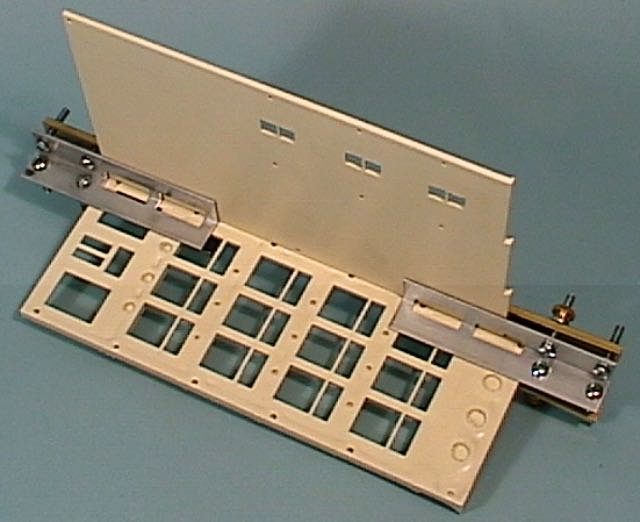

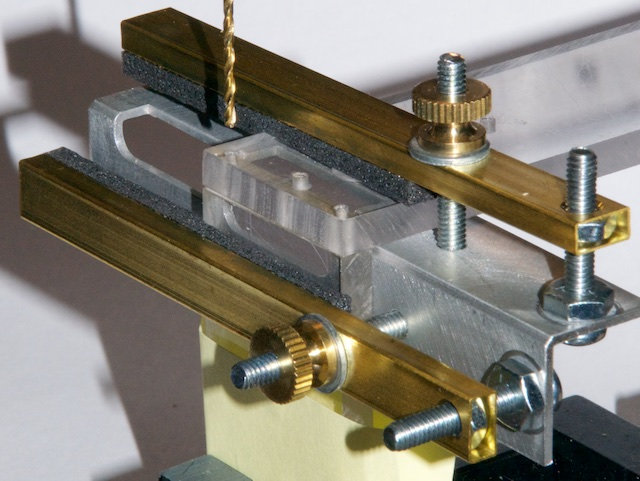

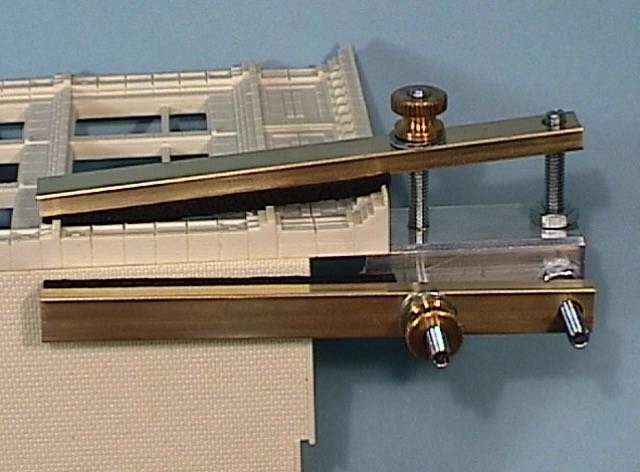

It is well suited for structures and particularly handy at reaching over the large cornice at the top front wall of some structures. A pair of clamps can hold longer parts from both ends. One of the photos shows a Large Right Clamp being used as part of a drill fixture.


Model Number: AC-4-2
Jaw Langth: 2.75" (70mm)
Overall Length: 4.17" (106mm)
Base Angle Size: 0.75" (19mm)
Max Jaw Opening: 9/16" (14mm)
Weight: 2.2 oz (62g)

Jaw Length in Scale Feet:
N Scale: 160/1, 36 scale feet
HO Scale: 87/1, 20 scale feet
S Scale: 64/1, 15 scale feet
O Scale: 48/1, 11 scale feet
G Scale: 22/1, 5 scale feet
