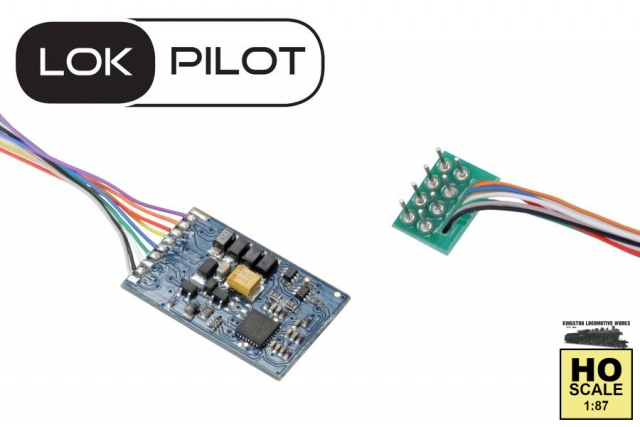

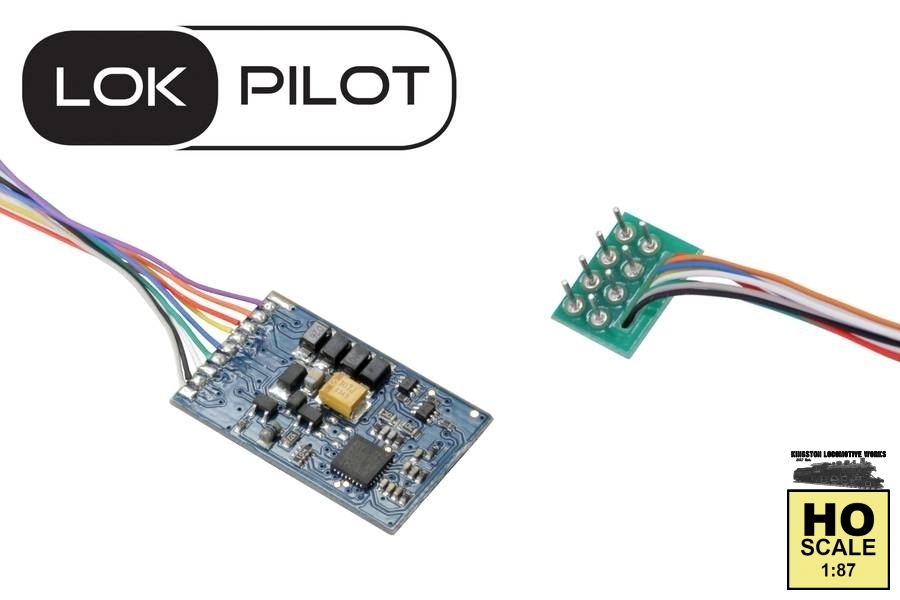

The LokPilot 5 Basic was developed with the aim of offering a modern decoder with a reasonable range of functions at a reasonable price.


Modes

The LokPilot 5 Basic is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 20 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully automatically to a suitable digital center.

It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.

The LokPilot 5 Basic Decoder detects the Märklin® brake distances as well as the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible.The LokPilot 5 Basic Decoder can be used on analog DC webs. The maximum speed can be set separately.The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted.


Functions

The LokPilot 5 Basic has 4 reinforced function outputs in each version. All important lighting functions are available. The brightness of each output can be set separately.


Motor

The motor control of the LokPilot 5 Basic delivers up to 0.9A continuous current. A variable PWM clock frequency from 10kHz to 50kHz ensures super-quiet operation, especially for bell anchor motors – The typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor.


Operational reliability

A PowerPack can be connected to the LokPilot 5 Basic to bridge dirty rail cuts.


Protection

Of course, all function outputs as well as the motor output are protected against overload. We want you to enjoy your decoder for as long as possible.
