Switching KATO and Rokuhan Points Is Now Even Easier – For Both Digital and Analogue!

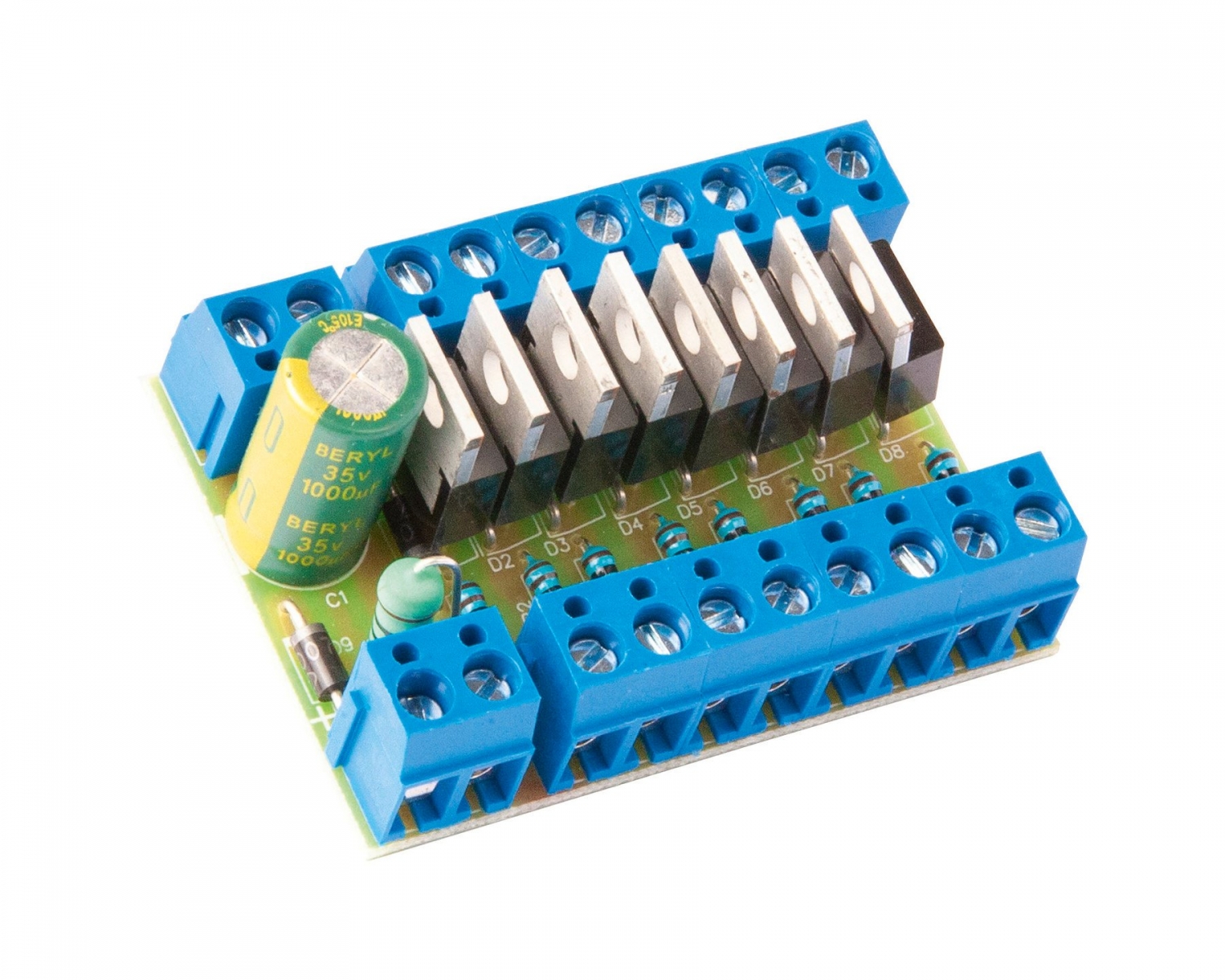

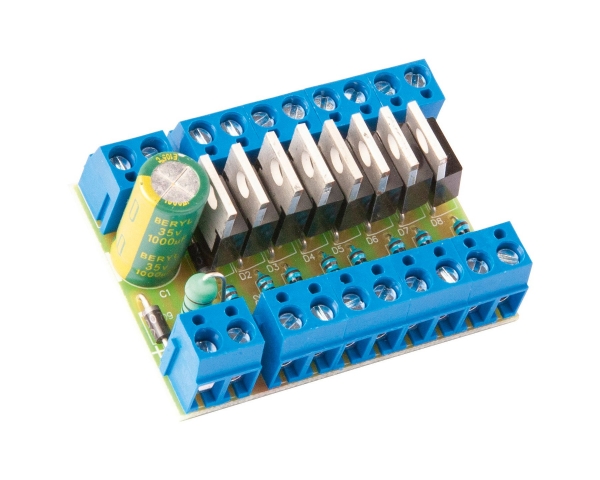

No matter whether you’re a novice or want to use your existing system, with the Point Module, conventional 2 x 4 button control panels and other control panels with a button function can be used to control KATO and Rokuhan points. A total of 4 points can be switched per Point Module.
The points, the control panel and the power supply are connected via screw terminals. Furthermore, switching with reed switches and digital switching with an upstream solenoid accessory decoder is possible. Soldering is not required. Connection is made to direct or alternating current with 10 to 16 volts.
The NOCH Point Module can also be connected to a solenoid accessory decoder. On the output side, some decoders have negative potential and others positive potential at the common connection. The NOCH Point Module requires positive potential at the common connection, often referred to as the ‘C terminal’, on the respective switch output on the decoder. Such decoders are, for example: LENZ LS100, item number 1110 and ESU SwitchPilot V2.0 4-way accessory decoder, item number 51820.
Note: pay close attention to the decoder manufacturer’s instructions.

*** Photos may show additional scenery, structures, figures, vehicles, tools, etc which are not included. Please ask before ordering if you're unsure what's included. ***
