H0 Laser-Cut Bridge Kit System
The bridge system developed by NOCH combines the product advantages of laser-cut and hard foam parts. All of the H0-gauge bridge kits shown on the previous pages can be combined with one another so that exemplary bridge constructions can be put together.

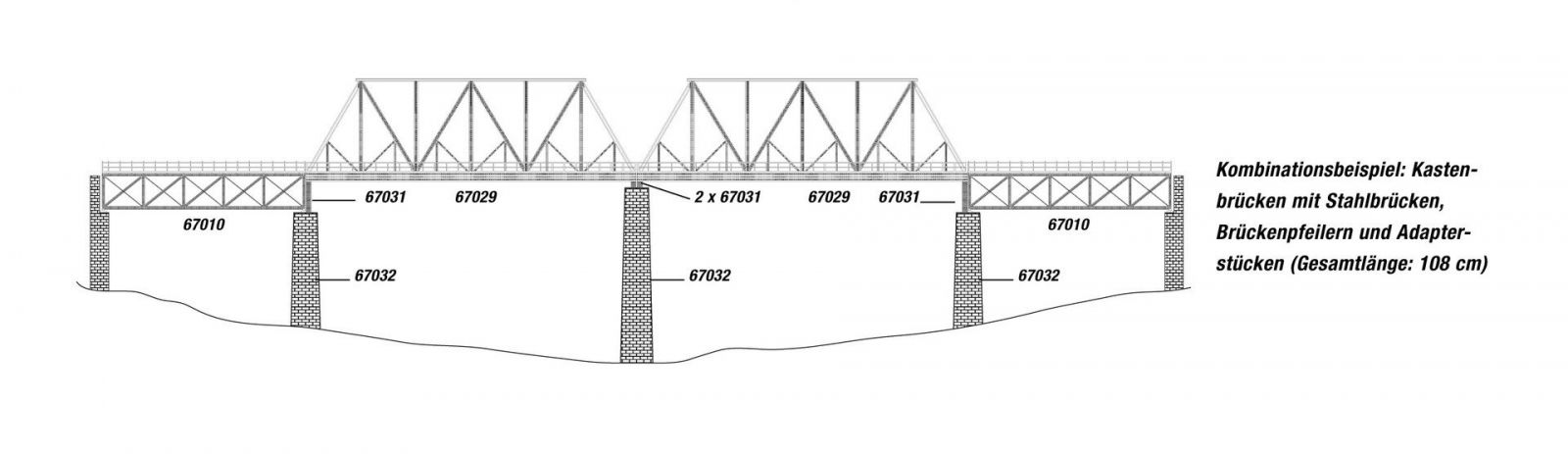

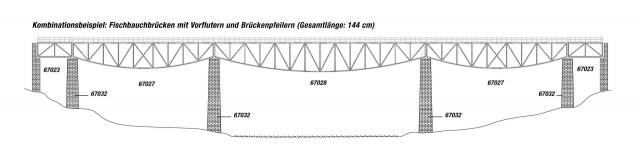

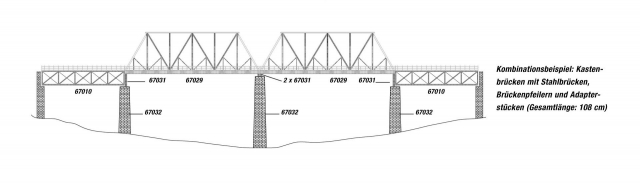

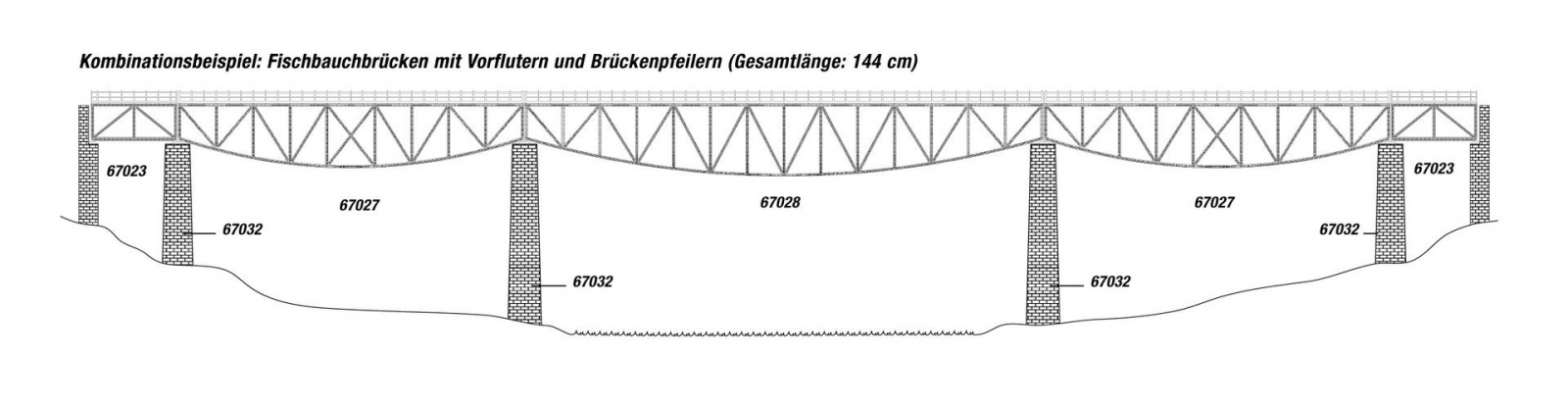

So, for example, you can combine the Fish Belly Bridges with the short Truss Approach Bridges, build several Box Girder Bridges one behind the other or create an attractive ramp with the help of the Bridge Tracks.

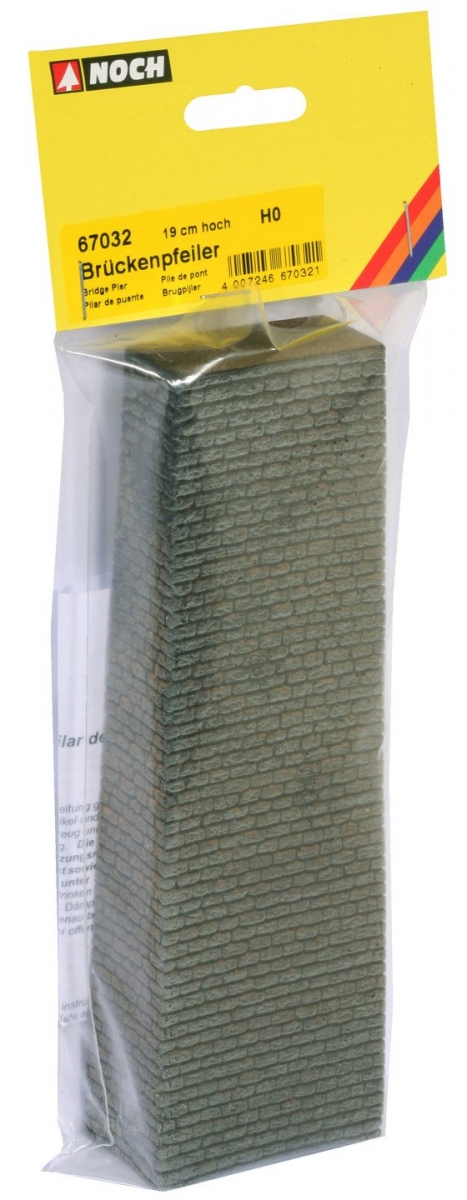

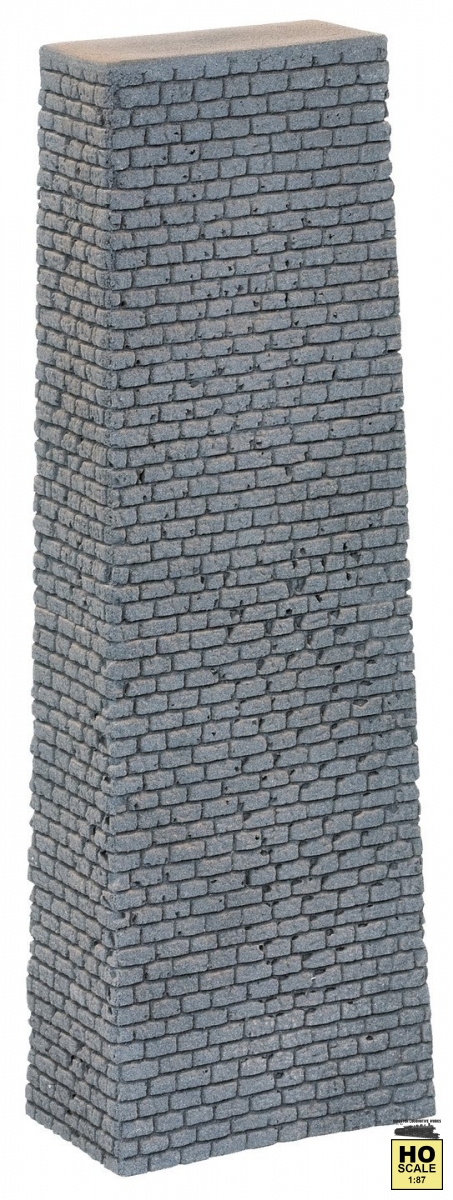

The Bridge Pier is required to combine several bridges. This is made of hard foam and can be cut to the correct size (e.g. with a hand saw) very easily. There’s no limit to your imagination when combining and designing bridges, as many of the Laser-Cut Bridges currently available in the NOCH range can also be combined with the system.
The Steel Bridge can thus be used as a Truss Approach Bridge, for instance. Bridge pier adapter pieces are required when combining certain bridges.

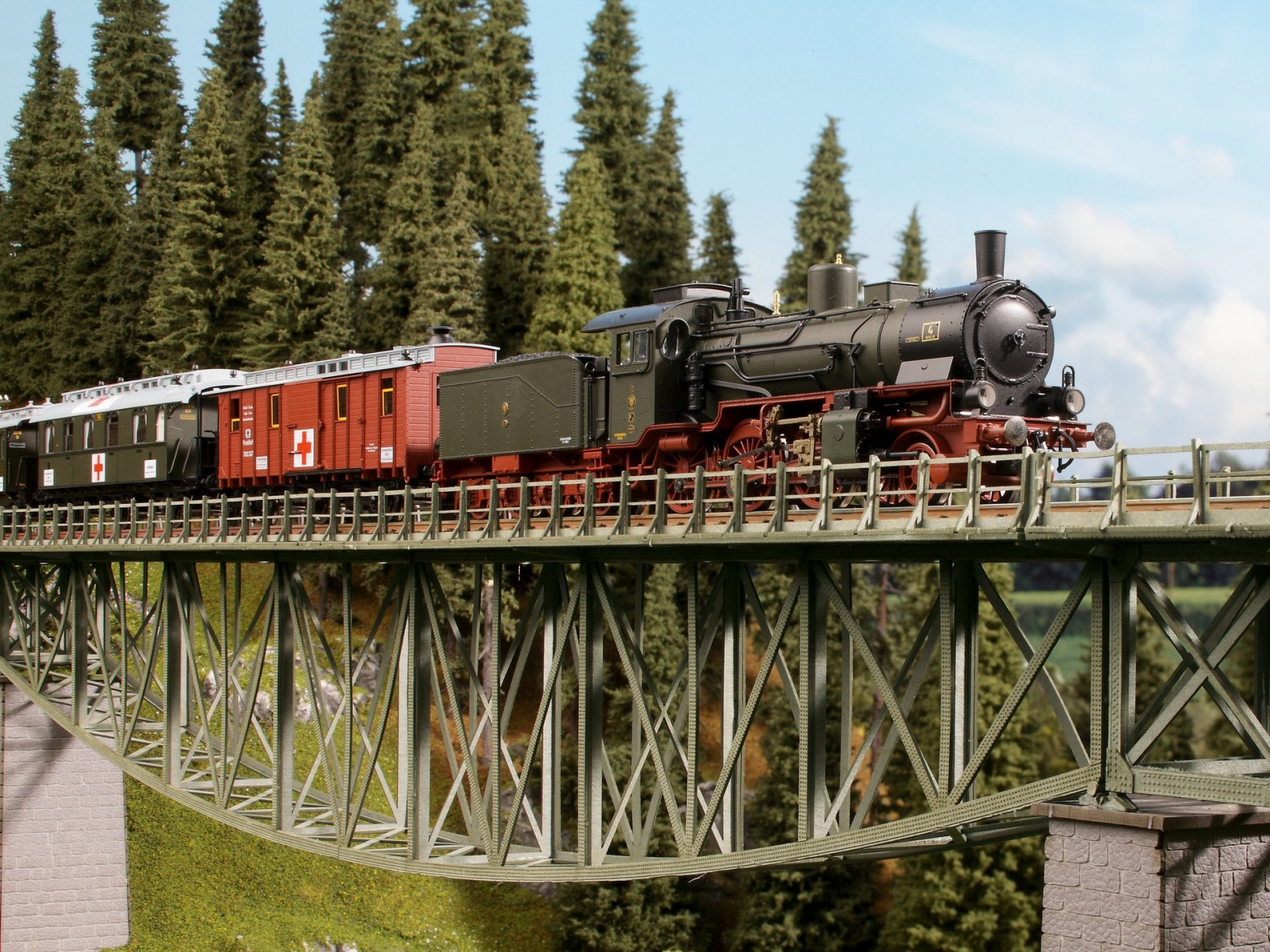

The “Bridge Pier” is ideal for properly supporting bridges on a model landscape so that everything holds securely. Make custom landscape scenes even more idyllic and realistic with the “Bridge Pier”. It makes for a real eyecatcher on every diorama.
Note: you’ll need bridgeheads for bridges with a beam if you want to combine the truss approach bridge with a bridge without a beam in order to integrate the entire construction into the landscape on the right and the left.
This bridge is designed for single-track railway lines. Two bridges can be built next to each other for double-track train operation. This Laser-Cut Bridge can be combined with the Stone Wall PROFI plus Series.

*** Photos may show additional scenery, structures, figures, vehicles, tools, etc which are not included. Please ask before ordering if you're unsure what's included. ***

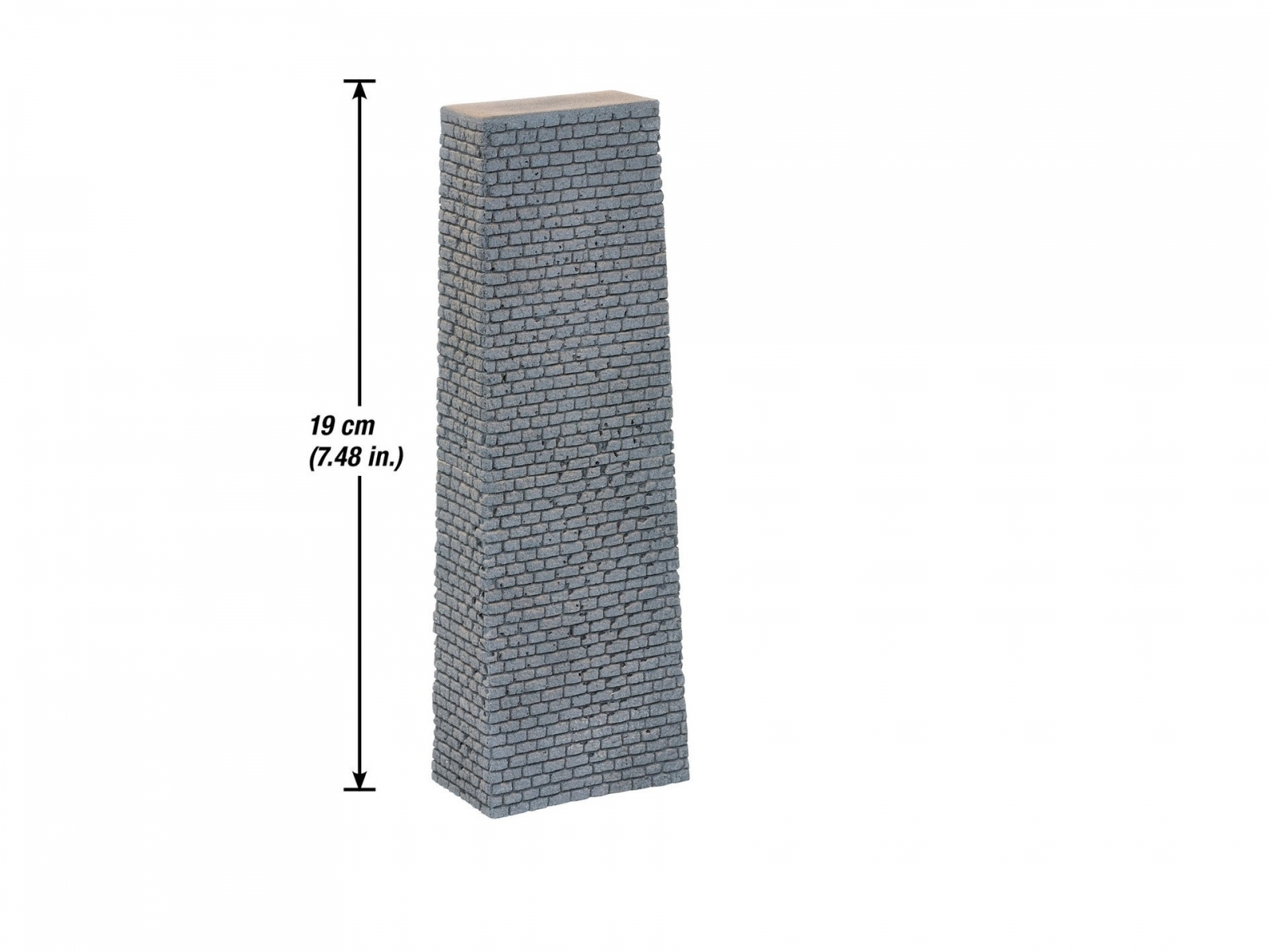

Height: 190 mm
Gauge: H0
Scale: 1:87 (H0)
