PECO Streamline OO/HO CODE 100

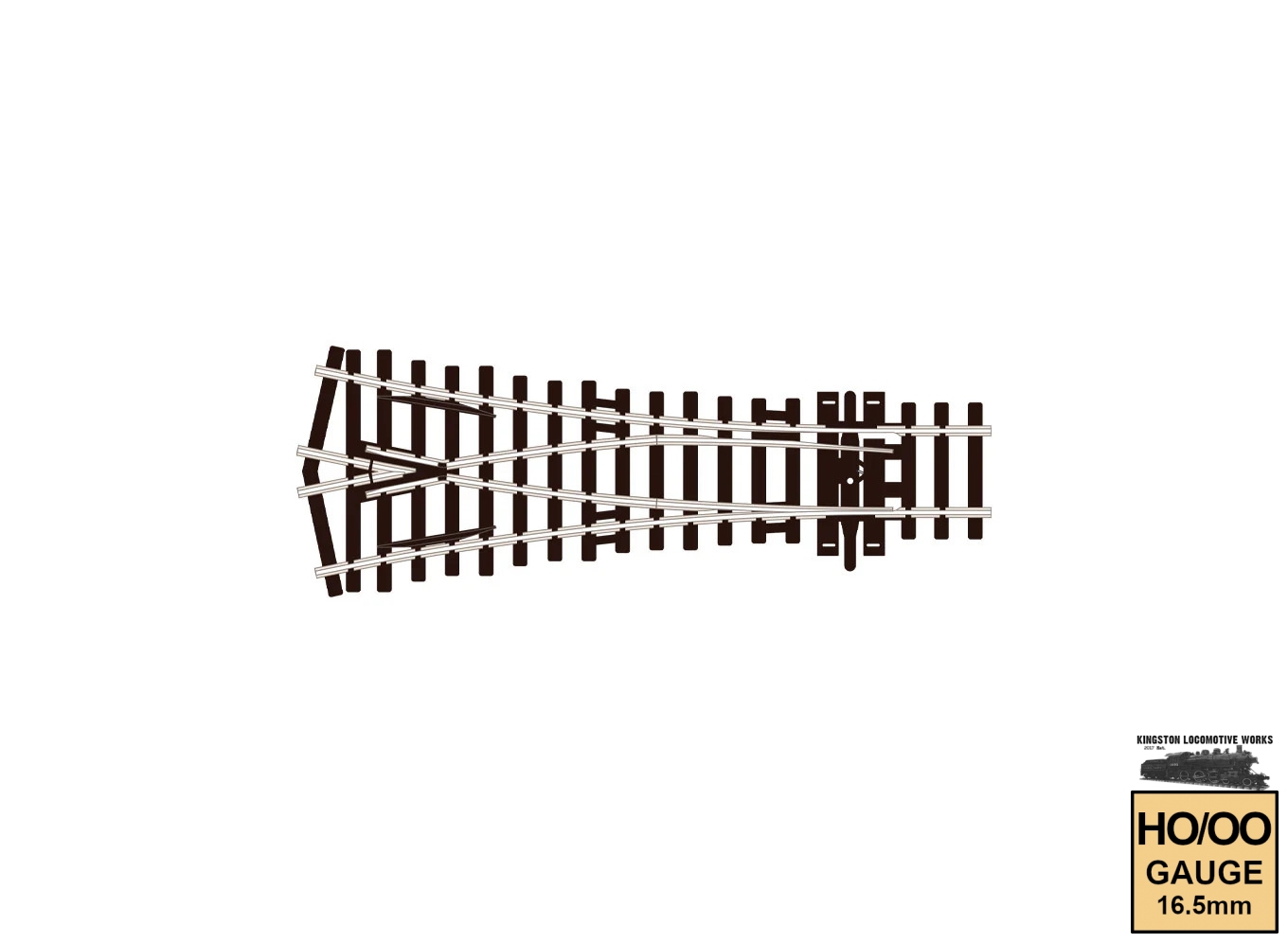

OO/HO Small Radius Y Turnout, Unifrog

Y Turnouts are really useful track components - their main benefit being as great space-savers. By combining the Y with the short crossing you can create a tight radius double junction and using several Ys together allows you to fit more routes in a restricted space. Ideal when building small loco yards and goods sidings. It's what the real railways would have done after all!

On a Unifrog turnout the frog tip and wing rails are electrically isolated from all other rails. The turnout can be used as supplied on a DC or DCC layout without any modification, using the standard SL-10 rail joiner. If desired, the frog tip and wing rails can be powered by connecting the wire welded underneath to a changeover switch or microswitch working in unison with one of our turnout motors. Basically, as supplied the turnout operates as an Insulfrog turnout. If the frog is powered then it operates as an Electrofrog turnout. So, the best of both worlds in one unit!


Technical Specification:
Exit Angle: 24 Degrees
Radius: 610mm
