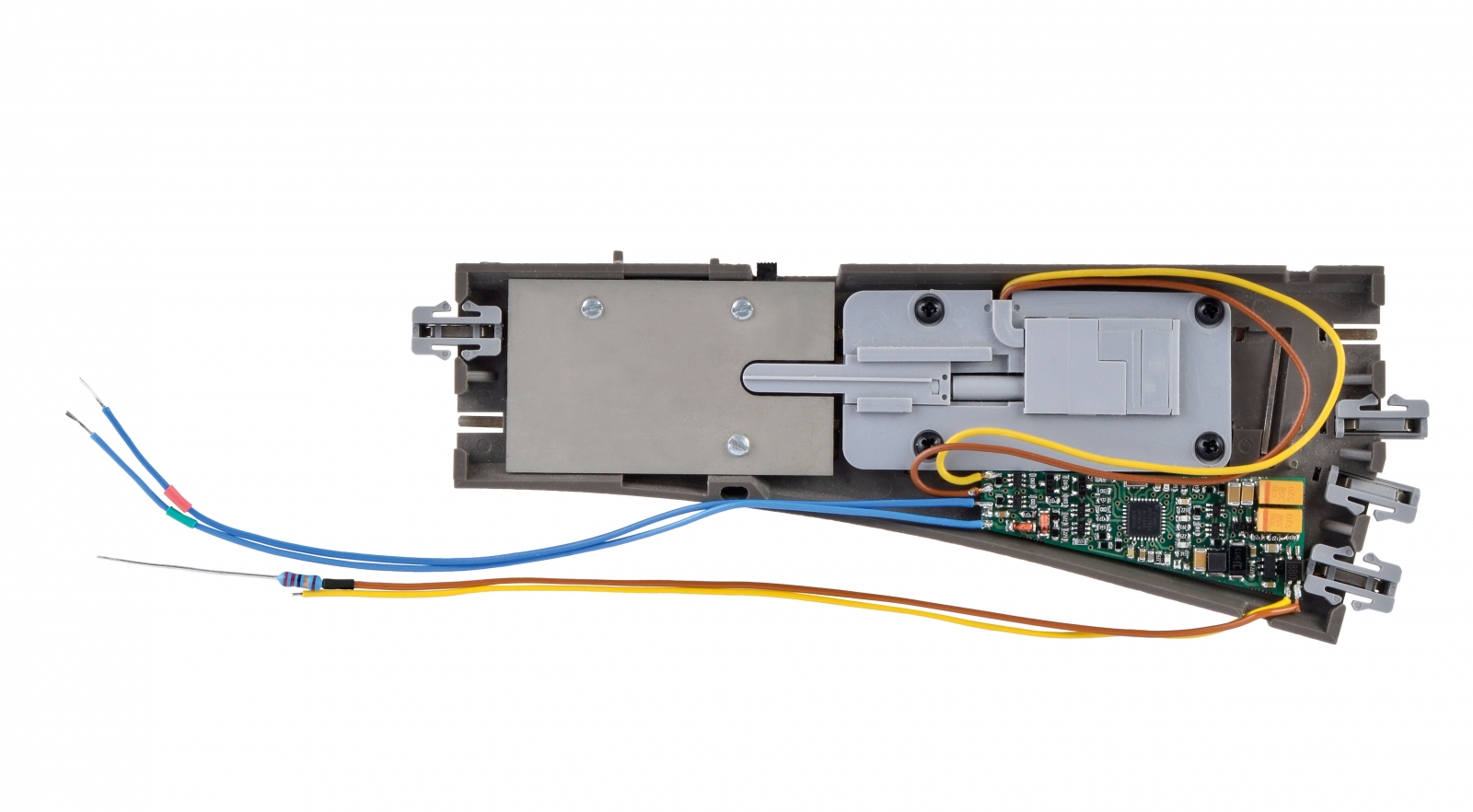

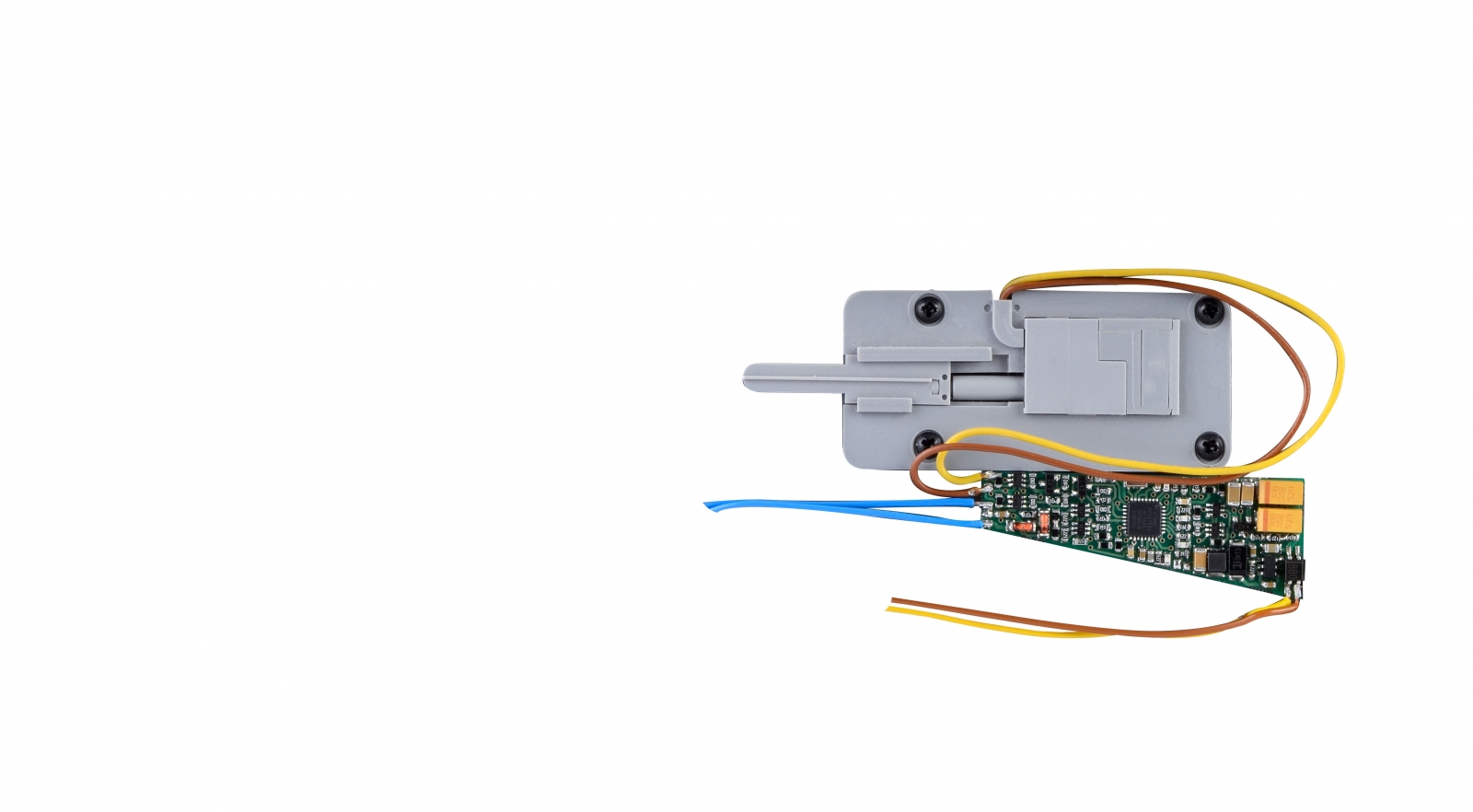

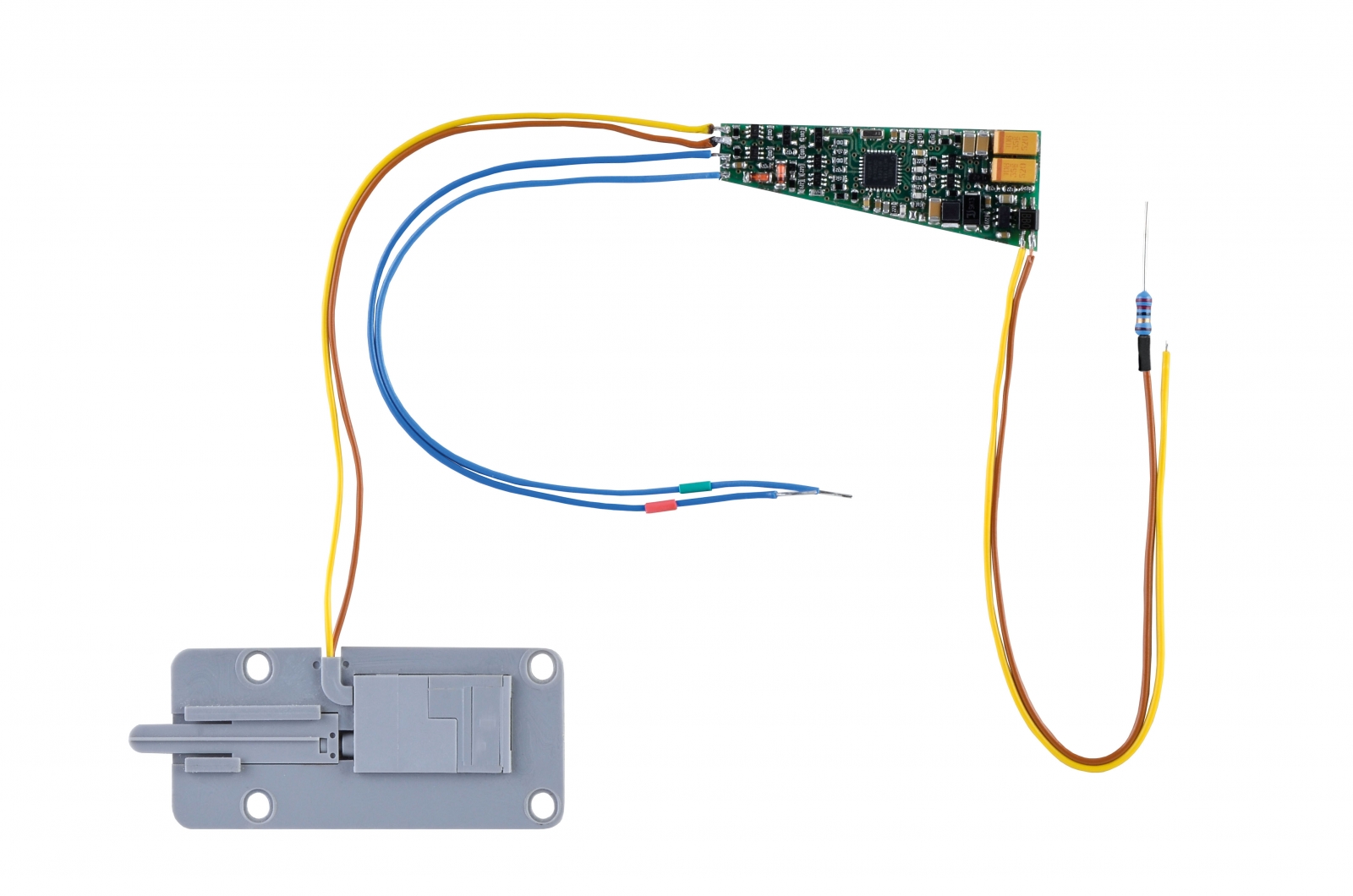

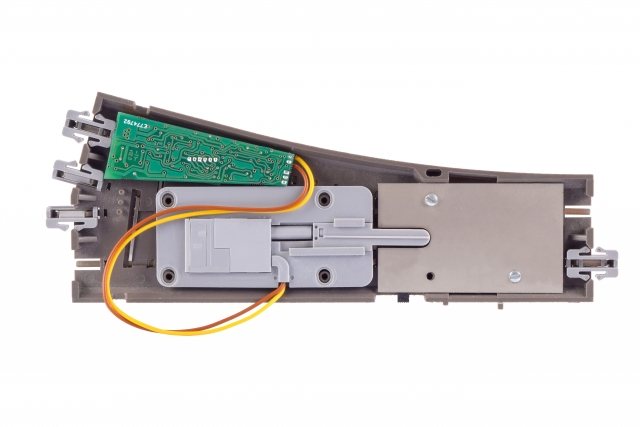

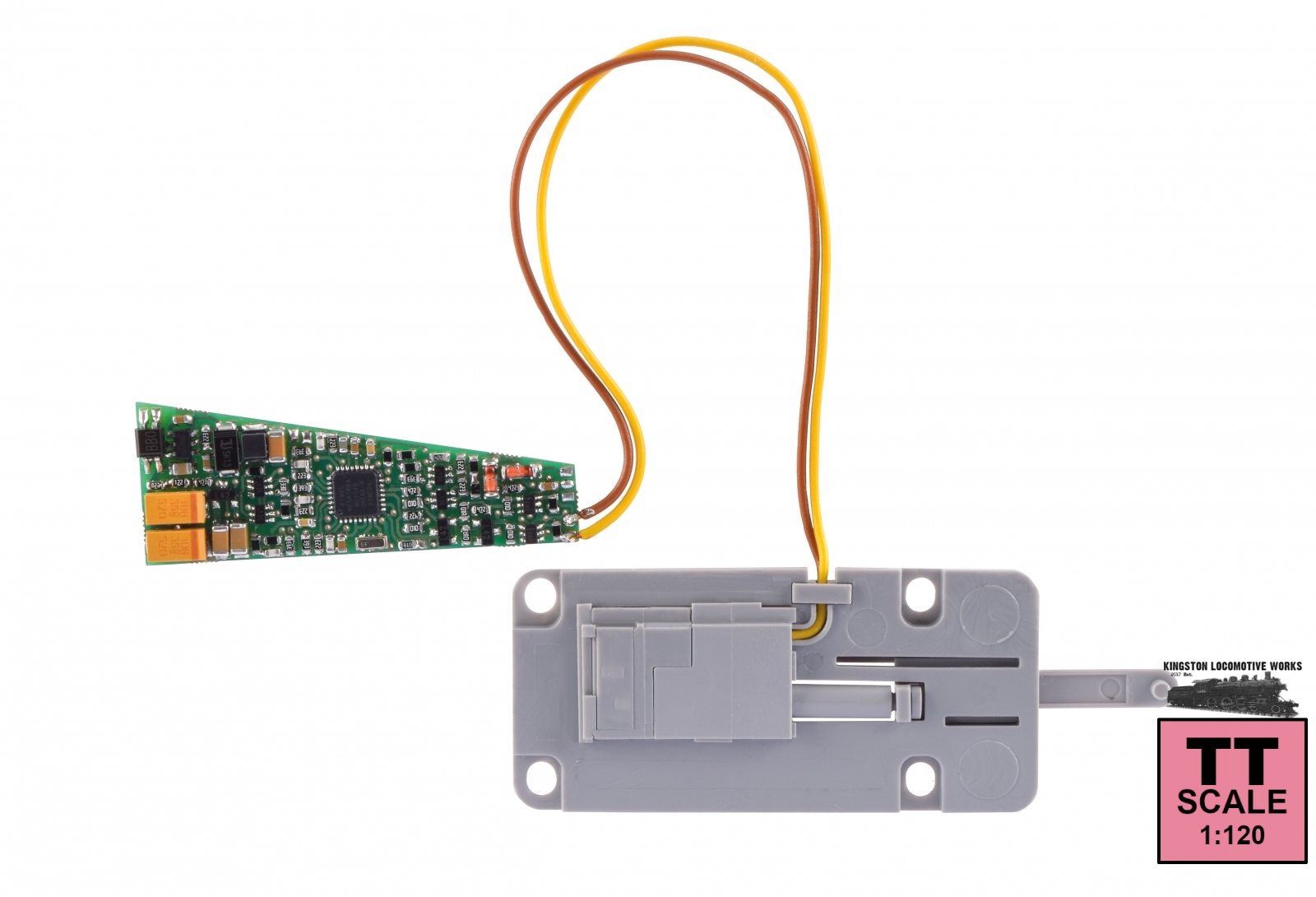

This special point machine is a powerful, silent drive with its respective digital decoder for installation in TT road bed points. The decoder is located in the cable making the driveparticularly compact. The point machine stands out for the prototypically slow movement of the point blades. Speed and motion are controlled electronically and ensure a sensitive drive. If – due to the characteristics of your turnout – the direction of the turnout does not fit with the switching direction of the command station, it is possible to set the point motor to reverse mode. The associated decoder is suitable for DC/AC, MM and DCC and is able to send the requested position or the actual position by RailCom to corresponding digital command stations (e. g. Viessmann Commander item 5300/5320). Analogue mode is possible. Additional switching outputs for a conventional feedback and frog polarisation complete the functions of the point machine. Their function is configurable. Tillig TT points (road bed point 15°): - 83816 right-hand turnout, manual (EW-re) - 83817 left-hand turnout, manual (EW-li) - 83818 right-hand turnout, with electric drive (EW-re) - 83819 left-hand turnout, with electric drive (EW-li) - 83820 right-hand turnout, with hand drive (BW-re) - 83821 left-hand turnout, with hand drive (BW-li) - 83861 similar flexure turnout type B, right-hand (BIBW-re) - 83862 similar flexure turnout type B, left-hand (BIBW-li) - 83863 similar flexure turnout type B, right-hand (BIBW-re) - 83864 similar flexure turnout type B, left-hand (BIBW-li)

Recommended Age: 14+

*** Photos may show additional scenery, structures, figures, vehicles, tools, etc which are not included. Please ask before ordering if you're unsure what's included. ***
