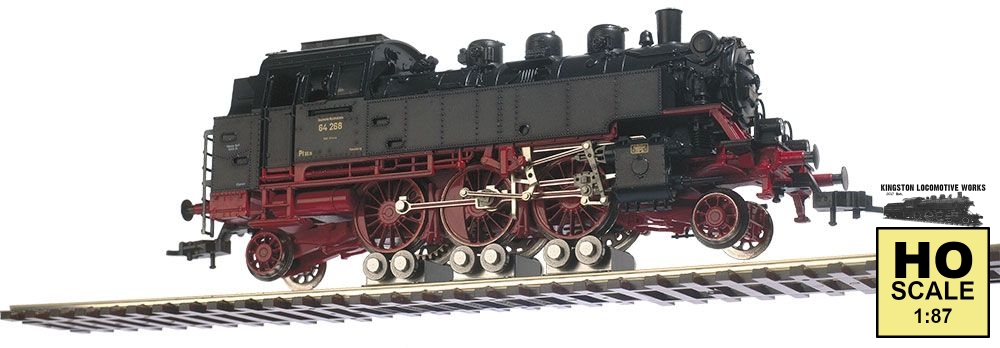

The roll test stand is used to jack up a locomotive. With the roll test stand current transfers from the rail to the wheels of the locomotive allowing them to turn freely while the locomotive remains stationary. The roll test stand is handy in the workshop for locomotive repairs, cleaning, oiling, or for displaying locomotives on bookshelves, etc.

This newly developed and patented roll test stand consists of three sets of roller supports each of which cradles an axle (all the axles of a locomotive do not have to be supported with roller supports). Two contact areas pick up current from the track and pass it to the wheels through the roller support casters. The roll supports can be made compatible with the Maerklin® system by the use of additional contact springs (to be provided) and an additional neutral conductor contact. The roller supports are constructed of high-precision turned parts, which ensure smooth running properties and current transmission.

Technical Data:
Gauge: 16.5 mm (H0)
Minimum axle separation: 14 mm
Caster diameter: 6.5 mm
Clearance track upper edge to wheel: ca. 7 to 8 mm
Wheel support with 3 degrees of bevel after NEM
Size of each support: 14 x 22.5 x 9 mm (L x W x H)

*** Photos may show additional scenery, structures, figures, vehicles, tools, etc which are not included. Please ask before ordering if you're unsure what's included. Most structures are kits which require assembly. ***
