Fits E24 socket locomotives Plug-in E24 socket

Motor drive at connector capacity
13 FX8 Functions, 200mA capacity

Features:
- 24-Pin E24 Plug for all track, motor and function connections, allows decoder to be moved between different locomotives.
- Series 7 Enhanced Decoder Features.
- XF expanded function capability, allows user remap of function keys F0-28 to function output leads.
- Firmware may be user updated using a Digitrax USB equipped Command Station with Sound Loader in decoder IPL mode.
- Digitrax FX Functions-Control lights and functions for prototypical lighting effects and on/off control.
- Configurable FX3 Pulse Function available on all function outputs.
- Digitrax LocoMotion® System — Lets your trains run like the real thing!
- 2 Digit and 4 Digit Addressing.
- Basic, Advanced & UniVersal Consisting.
- SuperSonic motor drive for silent operation.
- Direct and Operations Mode programming.
- Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment. Decoder Reset by CV8, with or without speed table reset.
- Transponder Equipped ready for transponding ID on your layout.
- Power-on Motor Isolation Protection, helps prevent damage to your decoder.
- DCC Compatible.
- FCC Part 15, Class B RFI compliant.
- Operates on DCC track voltage 9V minimum. to 18V maximum.

Parts List:

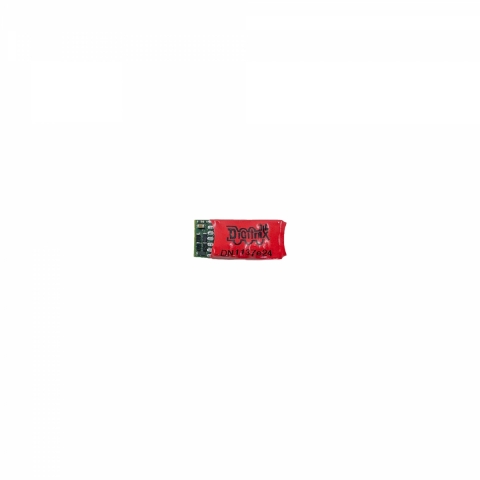

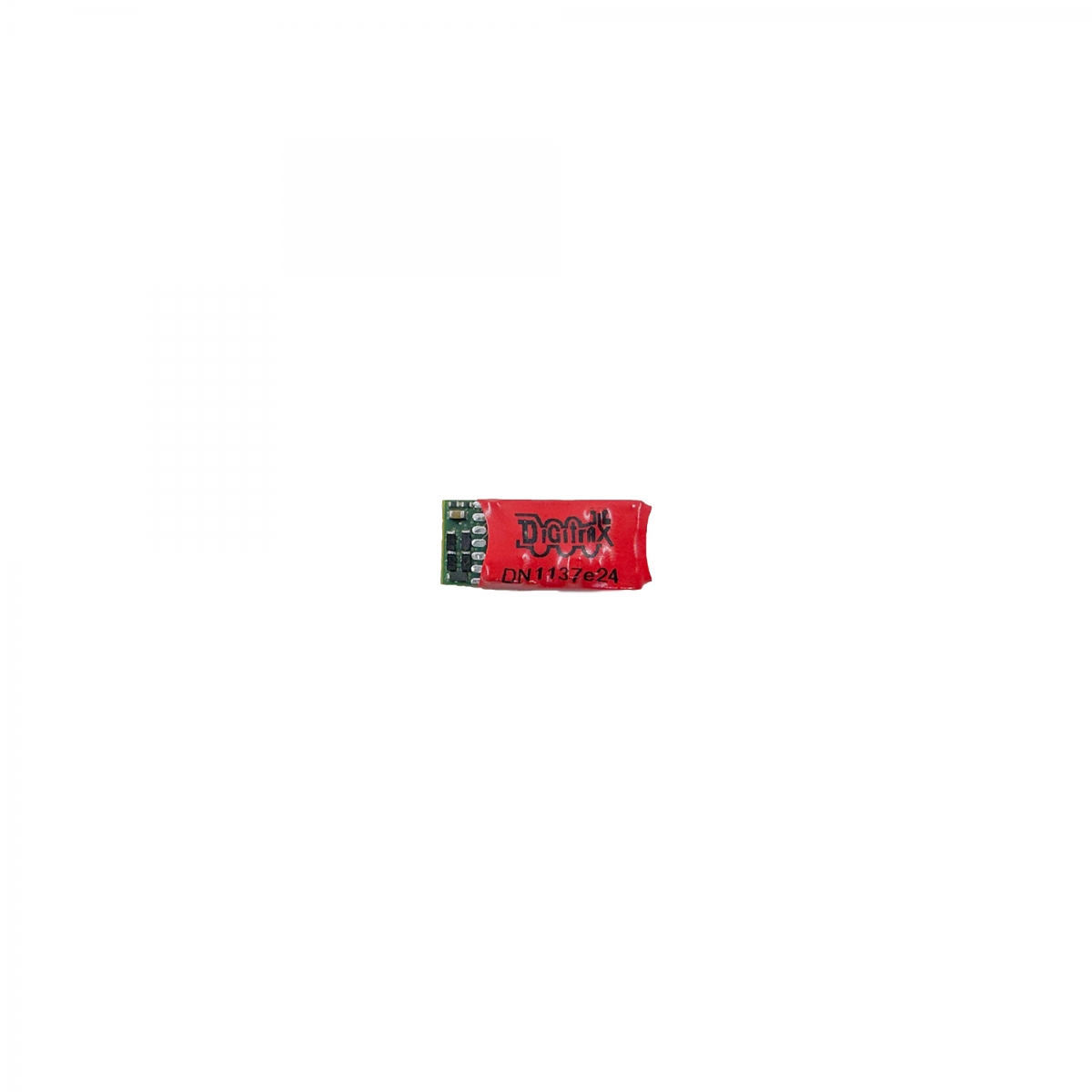

1 DN1137e24 Mobile Decoder with E24 plug interface
1 Instruction Sheet
