Product Details
   NixTrainz NTZ1 V1B Decoder Buddy 8 Output w/ 2.2K Resistors Manufacturer: NixTrainz (Made in USA)
Part Number: NTZ1 (494-NTZ1)
Condition: New
Our Price: π¨π¦ $18.77 (Plus applicable taxes) MSRP: πΊπΈ $16.00 (π¨π¦ $22.09) - Save 15%! β
2 in stock and available to purchase! β Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Description:

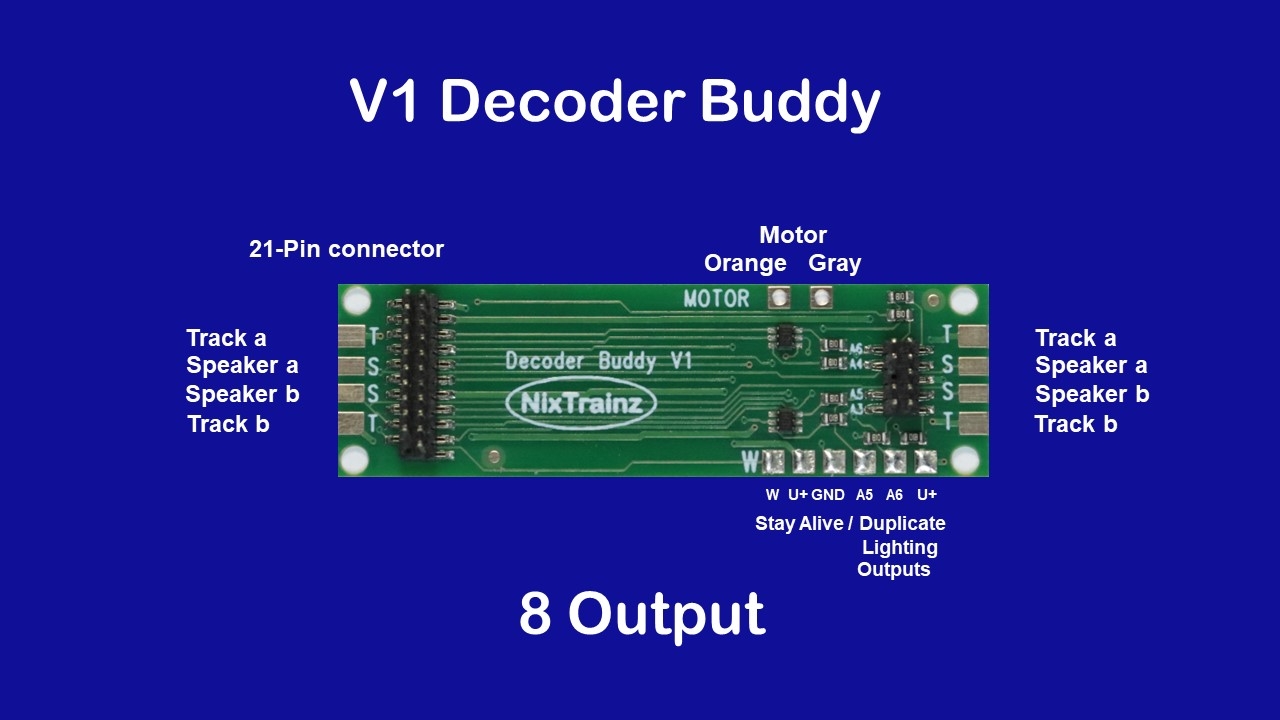

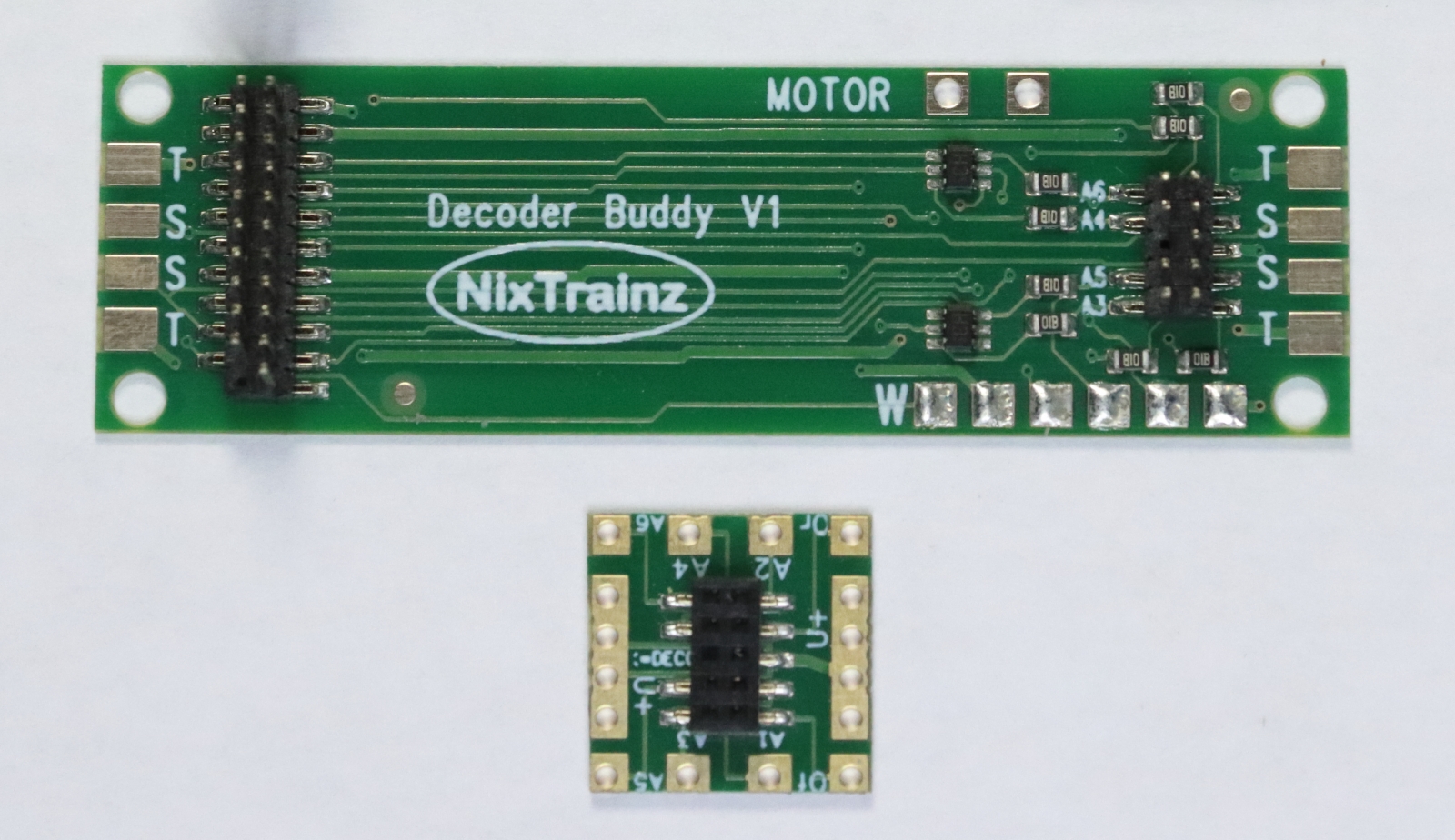

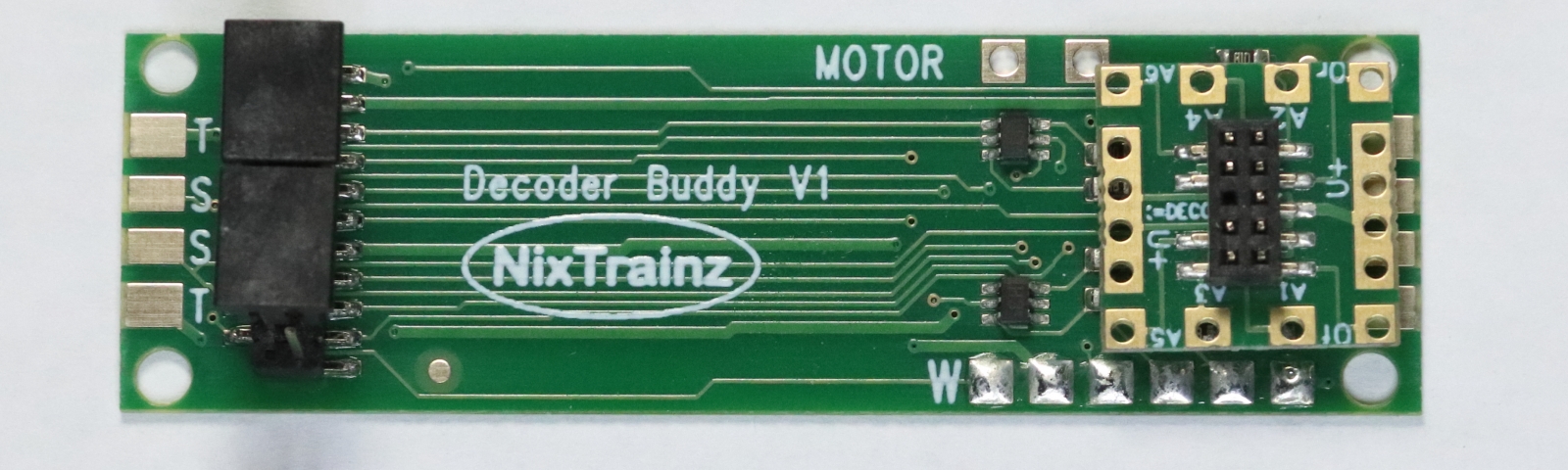

This proven board makes for super-easy 21 pin decoder installs from vendors such as Digitrax, ESU, SoundTraxx, TCS and NCE! Now a 21-pin-friendly board replaces the standard DCC 8-pin loco motherboard and easily allows taking full advantage of all the functions and features of the latest new feature-rich decoders. The V1B has 8 Aux outputs for lights. Eight are present on the small connector board and two are paired to the motherboard and associated with the frame (Fx5 & Fx6). The track and speaker pads stayed the same size. The pads on the small connector board got a little smaller. These pads are all separated and have holes to help hold the wires. The stay alive pads moved to the other side of the motherboard out from under the decoder and are in an easy place to solder to like the original. 0.67β x 2.20β x 0.35β 17 mm x 56 mm x 9 mm UPC: 0494000001004
|
